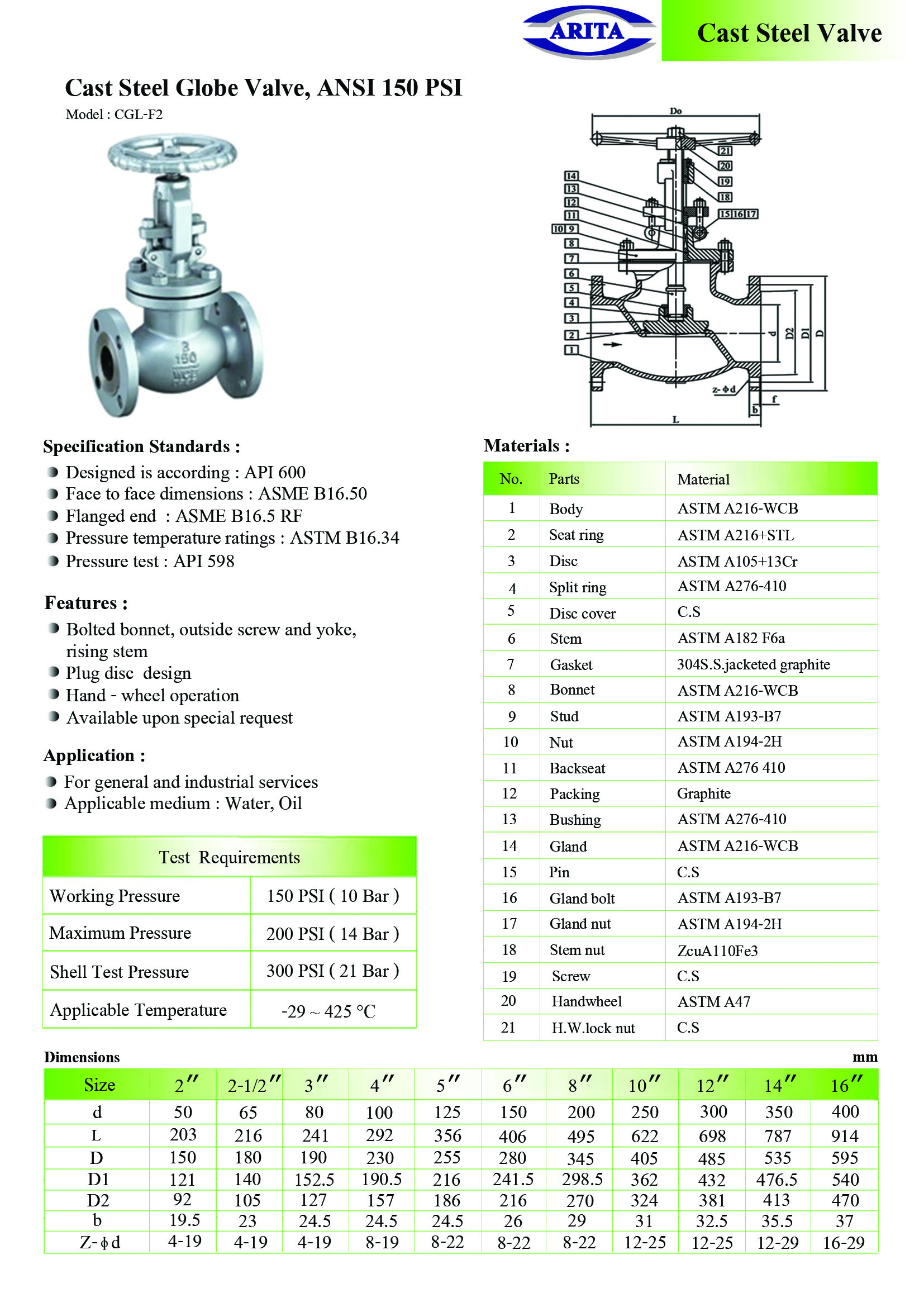

Globe valve CGL-F2 ASTM A216-WCB
2,900.00 ฿
- Brand : Arita
- รุ่น : CGL-F2
- Body material : ASTM A216-WCB , Cast steel
- Gasket marerial : 304 SS Jacketed graphite
- Connection : Flange ANSI150P
- Working pressure : 150 psi , 10 bar
- Applicable Temp. : -29/425 °C
- Size available : 1″ (DN25) – 16″ (DN400)
[/row]
| Brand | Arita |
|---|---|
| Body mat | Cast steel |
| Connector | Flanged |
| Flange Standard | Ansi150 |
| Size | 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16" |
