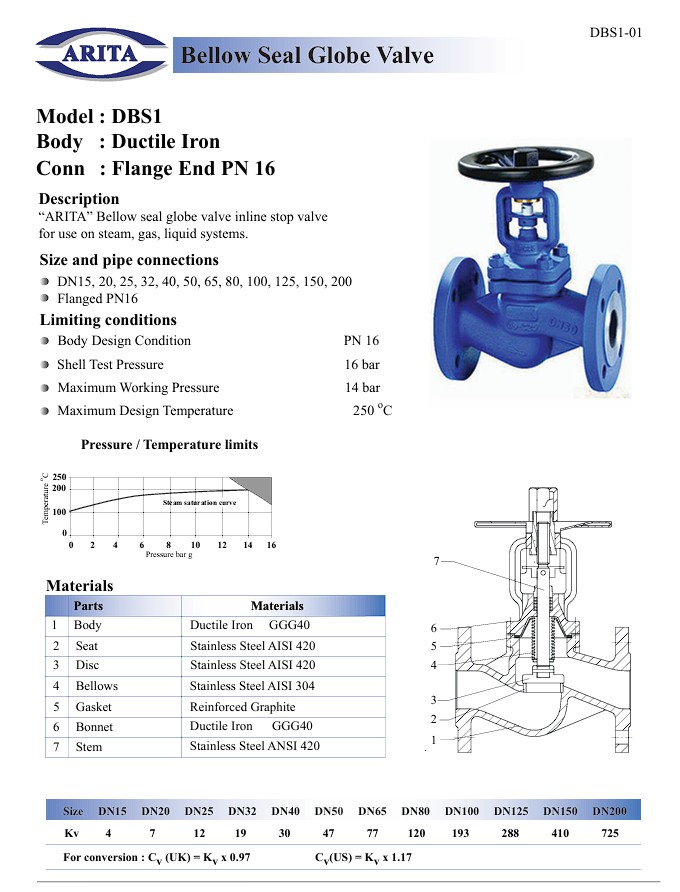

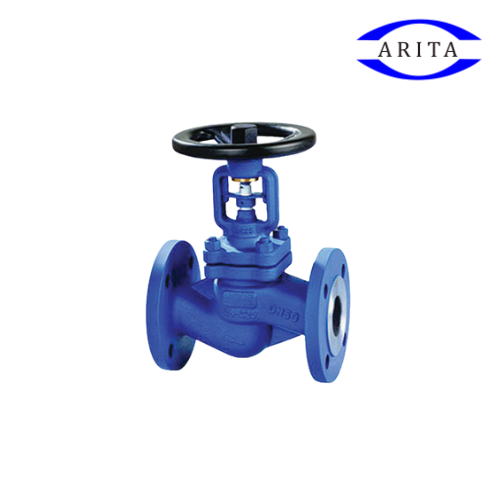

Ductile iron Bellow Seal Globe valve DBS1
9,900.00 ฿
- Brand : Arita
- รุ่น : DBS1
- Body : Ductile iron
- Connector : Flange PN16
- Size Available : DN15 – DN200
- Use on Steam , Gas , Liquid
Categories: Globe Valve, Valve, วาล์วระบบไอน้ำ ( Steam Valve )
[/row]
| Brand | Arita |
|---|---|
| Body mat | Ductile iron |
| Connector | Flanged |
| Flange Standard | PN16 |
| Size | DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 |
Be the first to review “Ductile iron Bellow Seal Globe valve DBS1” ยกเลิกการตอบ
