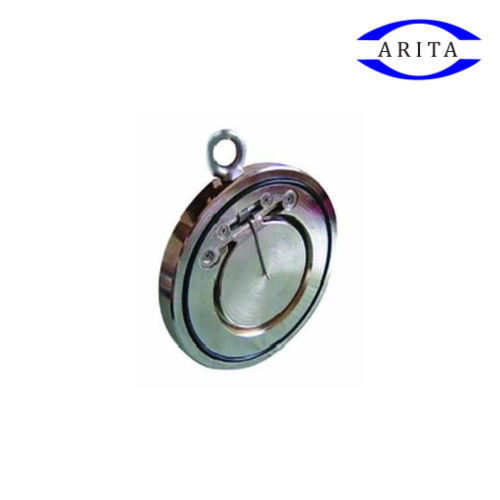

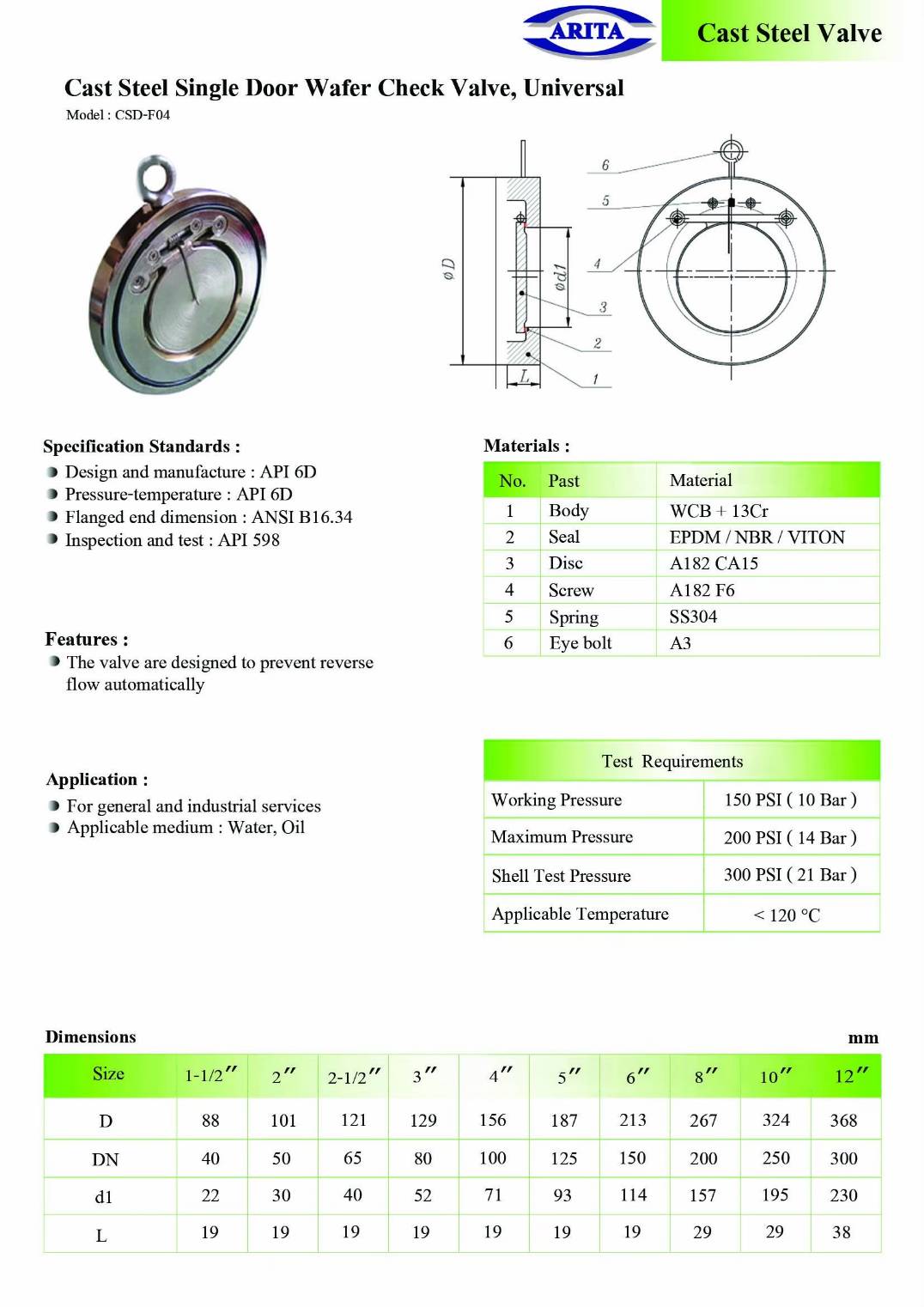

Cast steel Single door Check valve งานระบายน้ำ
3,000.00 ฿
- Brand : Arita
- รุ่น : CSD-F04
- Body material : Cast Steel , WCB + 13Cr
- Disc material : A182 CA15
- Seat material : EPDM / NBR / VITON
- Connection : Universal Flange
- Size available : 1-1/2″ (DN40) – 12″ (DN300)
- เหมาะกับงานระบายน้ำ
Categories: Check valve ( เช็ควาล์ว ), Valve
[/row]
| Brand | Arita |
|---|---|
| Body mat | Cast steel |
| Connector | Flanged |
| Seat-mat | EPDM, NBR, Viton |
| Size | 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12" |
