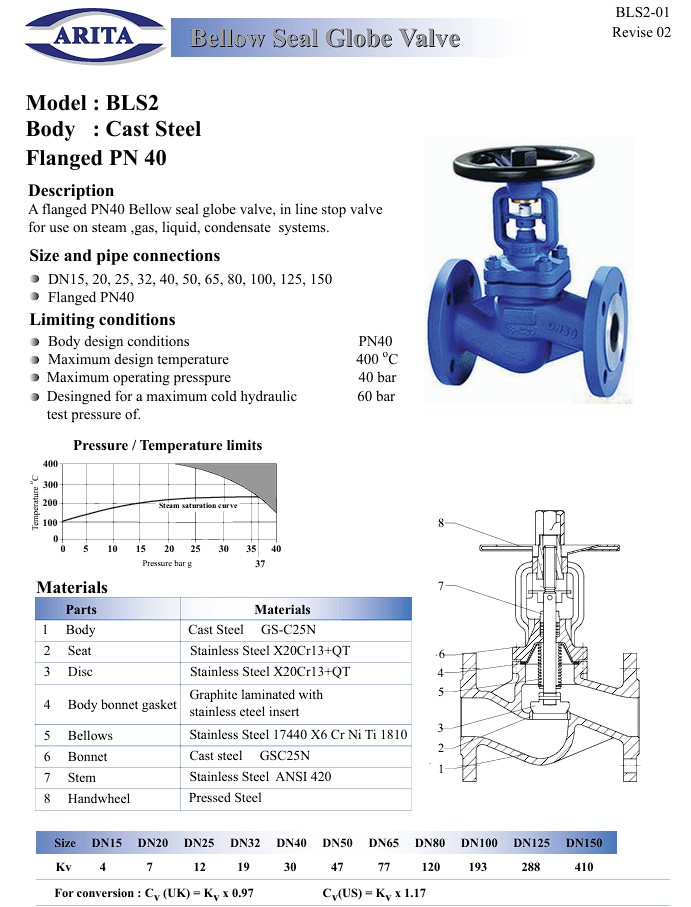

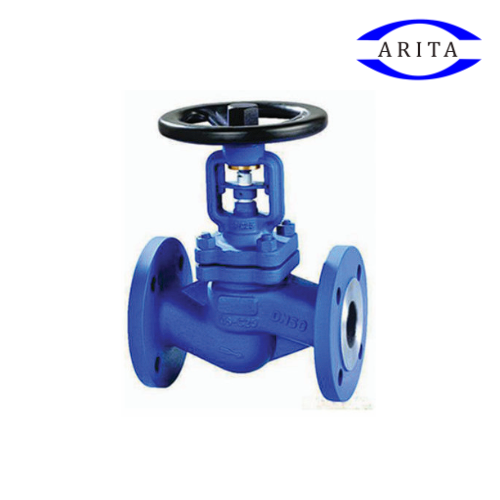

Description
A Flanged PN40 Bellow seal Globe valve, in line stop valve for use on steam , gas liquid , condensate systems.
Size and pipe connections
Limiting conditions
- DN 15,20,25,32,40,50,65,80,100,125,150,200
- Flanged PN40
- Body design condition : PN40
- Maximum design temperature : 400 C
- Maximum operating pressure : 40 bar
- Designed for a maximum cold hydraulic : 60 bar
BLS2Â Part Materials
| Part | Materials | |
| 1 | Body | Cast steel GS-C25 |
| 2 | Seat | Stainless steel X20Cr13+QT |
| 3 | Disc | Stainless steel X20Cr13+QT |
| 4 | Body bonnet gasket | Graphite laminated with SUS insert |
| 5 | Bellows | SUS17440 X6 Cr Ni Ti 1810 |
| 6 | Bonnet | Cast steel GS-C25 |
| 7 | Stem | Stainless steel ANSI 420 |
| 8 | Handwheel | Pressed steel |

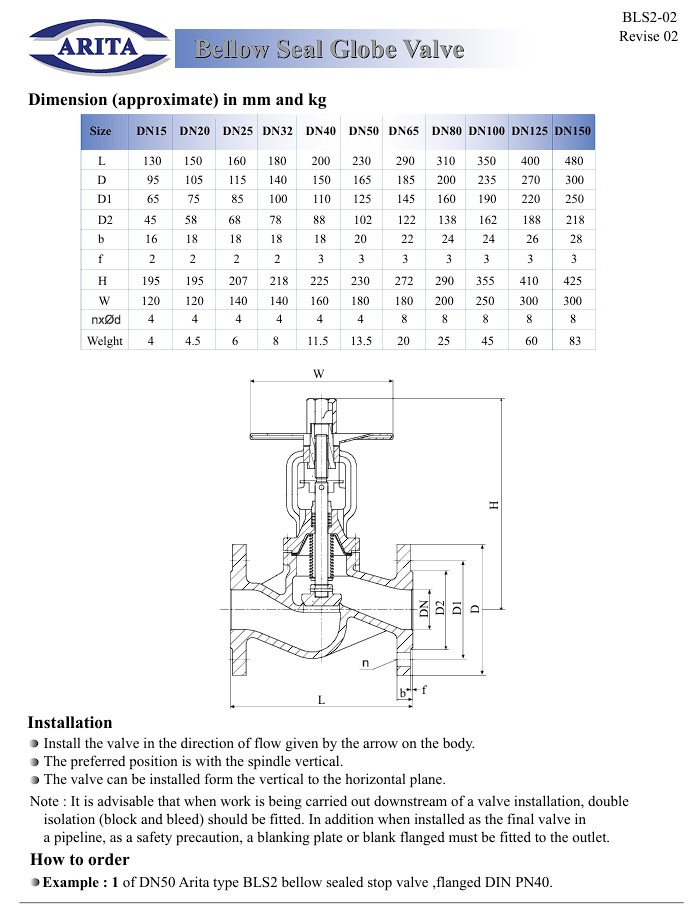

BLS2 Dimensions
| Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 235 | 270 | 300 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 | 220 | 250 |
| D2 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 162 | 188 | 218 |
| b | 16 | 18 | 18 | 18 | 18 | 20 | 22 | 24 | 24 | 26 | 28 |
| f | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| H | 195 | 195 | 207 | 218 | 225 | 230 | 272 | 290 | 355 | 410 | 425 |
| W | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 |
| Weight | 4 | 4.5 | 6 | 8 | 11.5 | 13.5 | 20 | 25 | 45 | 60 | 83 |
Installation
- Â Install the valve in the direction of flow given by the arrow on the body.
- The preferred position is with the spindle vertical.
- The valve can be installed from the vertical to the horizontal plane
Note : It is advisable that when work is being carried out downstream of a valve installation, double isolation (block and bleed) should be fitted. In addition when installed as the final valve in a pipeline, as a safety precaution, a blanking plate or blank flanged must be fitted at the outlet.
