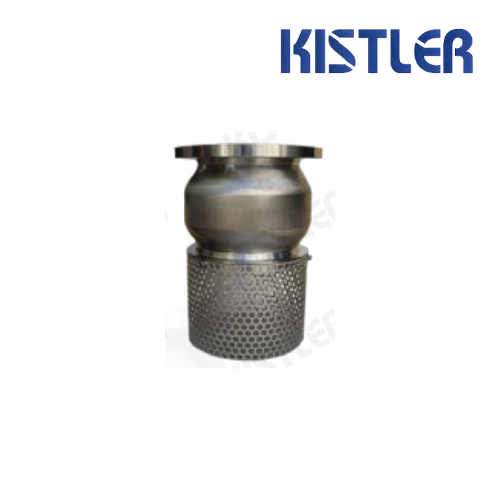

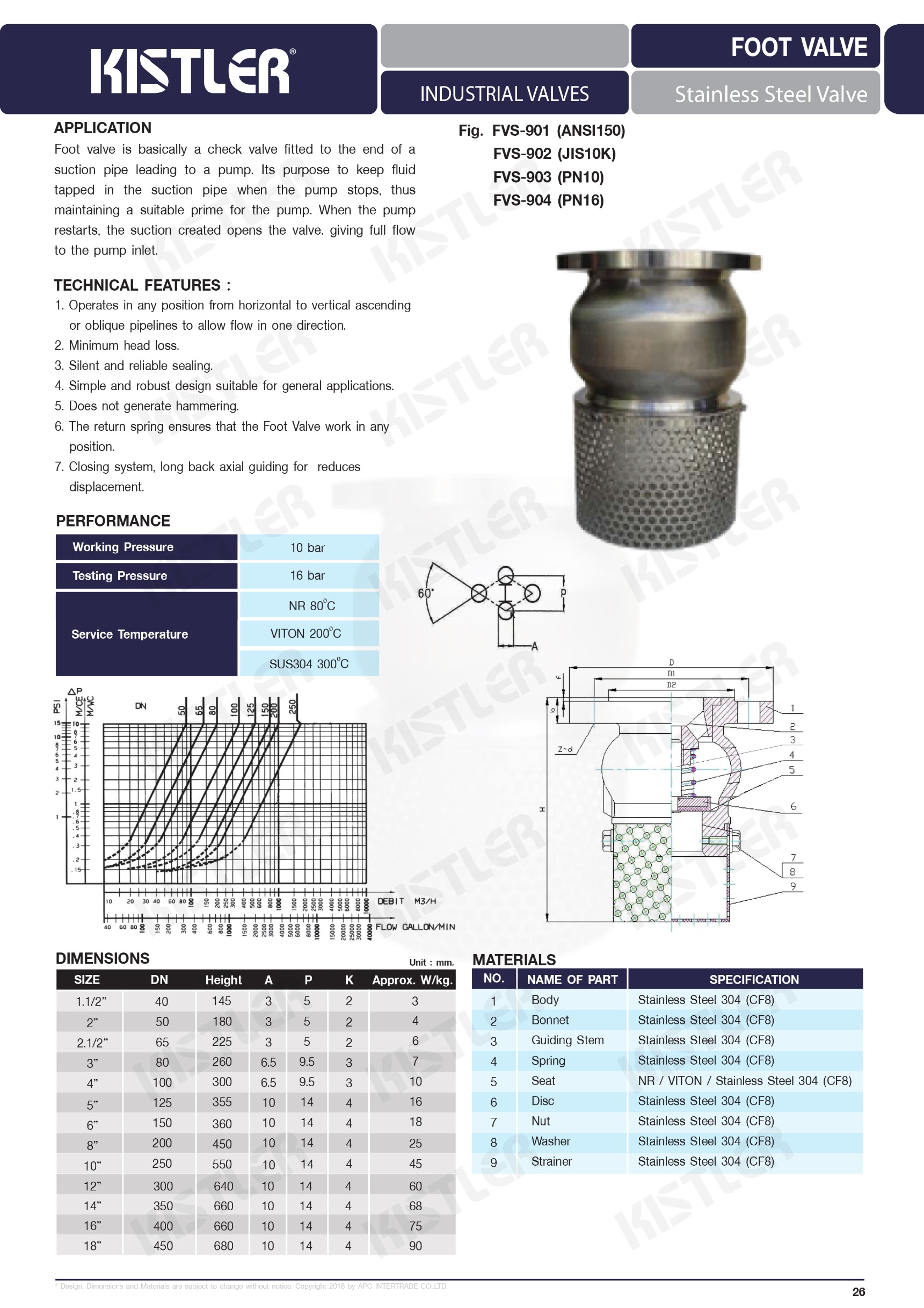

Foot Valve สแตนเลส FVS-901 Kistler
13,820.00 ฿ – 199,800.00 ฿
- Brand : Kistler
- รุ่น : FVS-901
- Body material : SS304 (CF8 , SCS13)
- Strainer : SS304 (CF8 , SCS13)
- Seat : NR / Viton / SS304
- Connection : Flange JIS10K,ANSI150P,PN10,PN16
- Size available : 1-1/2″ – 16″
SKU: N/A
Categories: Check valve ( เช็ควาล์ว ), Valve
[/row]
| Brand | Kistler |
|---|---|
| Body mat | SS304 |
| Connector | Flanged |
| Flange Standard | 10K, Ansi150, PN16 |
| Size | 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12" |
